The Basics: What Is an E‑Ink Display?

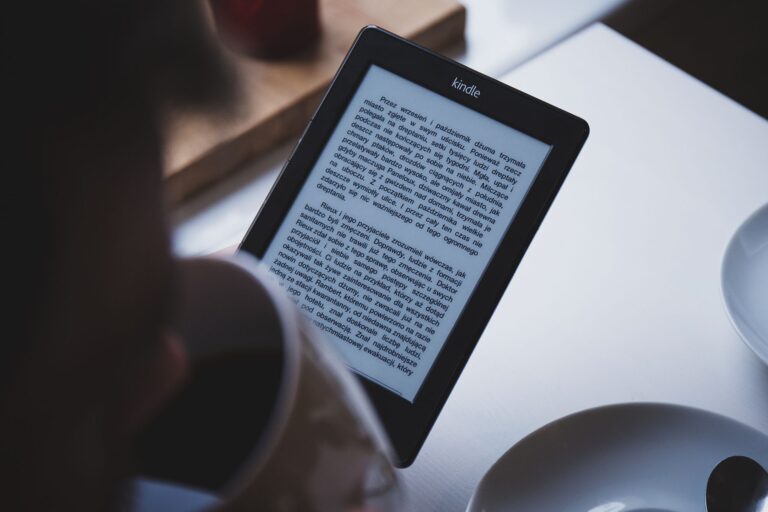

When you pick up a Kindle, a digital signage board, or a smartwatch with a paper‑like screen, you’re looking at an e‑ink display. Officially known as electronic paper, e‑ink mimics the appearance of ink on ordinary paper. Unlike the bright, backlit panels found in smartphones and laptops, e‑ink panels are designed to be readable in direct sunlight and to hold an image without a constant power supply.
The core idea is simple: each pixel contains tiny particles that can be moved to show either a dark or a light state. Because the particles stay where they are after the electric field is removed, the image persists even when the device is turned off. This “bi‑stable” behavior is what sets e‑ink apart from conventional displays that need to refresh thousands of times per second to maintain an image.
Electrophoretic Technology: How Pixels Change Color
Most e‑ink screens use electrophoretic technology, a process discovered in the 1970s and refined over decades. Inside each pixel sits a sealed micro‑capsule filled with a clear fluid, two sets of charged pigment particles (typically black and white), and a pair of transparent electrodes.
When a voltage is applied to the electrodes, the electric field drives the oppositely charged particles to opposite sides of the capsule. If the black particles are pulled to the top of the capsule, the pixel appears dark; if the white particles rise, the pixel looks light. Because the particles are suspended in a fluid, they can be repositioned repeatedly without mechanical wear.
The result is a bistable pixel that remains in whichever state it was set to until a new voltage pattern is sent. This mechanism is fundamentally different from liquid‑crystal displays (LCDs), which rely on a constant alignment of liquid crystals to modulate a backlight, and from organic light‑emitting diode (OLED) panels, which generate light at each pixel.
Reflective vs Emissive: Light Management Differences
Regular screens are emissive: they produce their own light. LCDs use a backlight that shines through layers of liquid crystals and color filters, while OLEDs emit light directly from organic compounds. In both cases, the screen must be powered continuously to maintain brightness.
E‑ink, on the other hand, is reflective. It contains no backlight; instead, it relies on ambient light—sunlight or indoor lighting—to illuminate the surface. The microcapsules act like tiny mirrors that reflect that light back toward the viewer. Because the display does not generate light, it can be read comfortably for hours without the eye strain associated with bright, emissive panels.
This reflective nature also gives e‑ink its distinctive matte finish, which eliminates glare and makes it ideal for outdoor use. However, it means that in very low‑light environments an external light source, such as a front‑light array, is required to make the content visible.
Power Consumption: Why E‑Ink Is So Efficient
The biggest power advantage of e‑ink stems from its bistability. Since a pixel retains its state without power, a device only draws electricity when it needs to change what is displayed. The energy cost of a page turn on a typical e‑reader is comparable to the brief burst used to update a few thousand pixels.
In contrast, LCDs continuously draw power to keep the backlight on, and OLEDs consume energy for every pixel that is lit. Even when the image on an LCD or OLED stays static, the panel still requires power to maintain that image. This is why e‑ink devices can often run for weeks on a single charge, while a comparable LCD tablet might need daily charging.
Because the power draw is so low, e‑ink is also attractive for battery‑constrained applications such as electronic shelf labels in retail stores, low‑cost e‑paper signage, and certain IoT devices that need long‑term deployment without frequent battery changes.
Refresh and Refresh Rate: What It Means for the User Experience
One trade‑off of electrophoretic displays is the speed at which they can change. Updating a pixel requires moving pigment particles through a viscous fluid, a process that takes noticeably longer than the microsecond response times of LCDs or OLEDs. Typical e‑ink screens refresh at a rate measured in seconds, not milliseconds.
This slower refresh is why e‑ink is best suited for static or slowly changing content: reading books, displaying weather forecasts, or showing static advertisements. Rapid motion, such as video playback or interactive gaming, appears choppy or is simply impractical on most e‑ink devices.
Manufacturers mitigate the refresh lag with techniques such as partial updates, where only the portion of the screen that changed is refreshed, and waveform optimization that reduces the time needed for particle movement. Nonetheless, the fundamental physics imposes a ceiling on how fast a full‑screen refresh can be performed.
Color, Contrast, and Viewing Angles
Traditional e‑ink panels are monochrome, delivering high contrast between black and white. The lack of a backlight means that the perceived contrast can actually improve in bright conditions, as more ambient light is reflected. The contrast ratio typically rivals that of printed paper, which is why many readers find e‑ink text crisp even in direct sunlight.
Adding color to e‑ink has been a gradual process. Early color e‑ink used a filter array over a black‑white electrophoretic layer, resulting in muted tones and lower contrast. More recent advances involve multiple pigment layers or advanced electrophoretic formulations that can display a broader palette while preserving the low‑power benefits.
Because e‑ink relies on reflected light, viewing angles are essentially unlimited—the image looks the same from any direction, unlike LCDs that can suffer from color shifting when viewed off‑axis.
Real‑World Applications and Emerging Trends
Beyond e‑readers, e‑ink has found a niche in several domains where its unique properties shine:
- Retail signage: Electronic shelf labels replace paper tags, allowing price updates from a central system without disturbing the shopping experience.
- Smartwatches and wearables: Devices that prioritize battery life and outdoor readability often incorporate small e‑ink screens for notifications and watch faces.
- Transportation: Bus route maps and train timetables use e‑ink displays that stay legible in sunlight and require minimal power.
- Industrial dashboards: Machinery monitoring panels benefit from the durability and low‑power draw of e‑ink, especially in harsh environments.
Research continues to push the boundaries of e‑ink technology. Flexible substrates are becoming more robust, opening possibilities for foldable or rollable paper‑like displays. Researchers are also exploring faster electrophoretic particles and new drive waveforms to improve refresh rates, making the technology more viable for interactive applications.
While e‑ink will likely never replace high‑refresh, full‑color displays for mainstream smartphones or gaming consoles, its distinct advantages ensure it remains a valuable complement in the broader ecosystem of screen technologies. For anyone who spends hours reading or needs a display that can run for months on a single battery, understanding how e‑ink works reveals why it feels so different—and often superior—to a regular screen.
